FX180

SK-910009 Discontinued



  Lower Battery
Position Design
  4mm Thick
Unibody Main Plate
  Adjustable Camera
Angle(10°/20°)

  Motor Protector
With Led Light
  XT60 Battery
Connector
  Multi Function
Power Hub

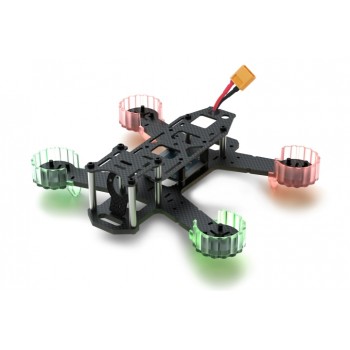

  Carbon fiber frame with lower battery position design which can optimize the center of gravity.

  A unibody main plate made of 4mm thick and top plate 1.5mm thick to ensure the durability and performance.


  10 degree/20 degree camera mounting board adjustable for FPV racing.

      Equipped with motor protection
mount with LED light to protect the motor when crash.


      With XT60 battery connector pre-installed on the frame, which is more convenient when DIY.

Pre-installed multi Function Power Hub, comes with six function:

• Power Distribution • Micro USB Power
• BEC 5V/3A Output • Low Voltage Alarm
   BEC 12V/1.3A Output • Lost Plane Finder
• LED Light Controller

  ESC   Motor
  20A BLHeli(SK-300068-01)   X2204 2300KV(SK-400017-01)

  Flight Controller   Battery
  NAZE 32 rev6 (SK-600100-01)   3S, 1300-1800mAh≥40C
4S, 1000-1500mAh≥50C


  Propeller
  5030, 5040










  • Power Distribution   • Micro USB Power
  BEC 5V/3A Output   • Low Voltage Alarm
  BEC 12V/1.3A Output
  • LED Light Controller   • Lost Plane Finder






Manuals
FX180&FX210 Instruction Manual V1.20 pdf
2017-09-06
