TS150

SK-300045-01 Discontinued
Suitable for 1/8th buggies, truggies and monster trucks
Support 2-6s LiPo battery
Built-in 6V/3A BEC, Replaceable fan
Multiple Protections
Electronic Power Switch Sensor Port
Cooling Fan Socket Programming Socket Servo Cable LED Indicator Battery Connector
Cooling fan Heat sink Red copper bar PCB (6 layers -4Oz)
10 User Modifiable Profiles
The users could set and store 10 sets of profiles in the ESC. These data could be called up at any time without any special program setting. All the setting can be exported or imported so that the user could compare and analyze.
Programming Method

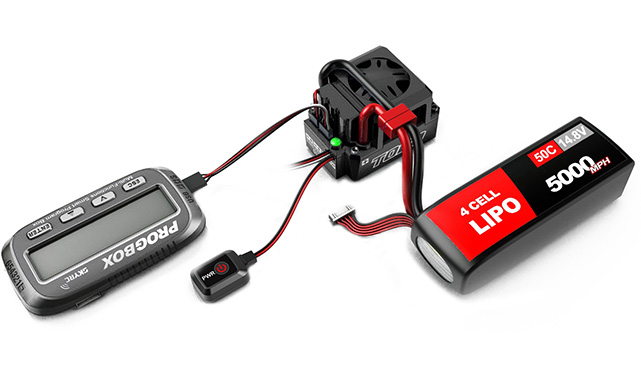

It can be programmed by program box and PC.
program box (SK-300046)
Specifications
Constant/Burst Current
150A/950A
Motor Compatible
Brushless Sensor & Sensorless ESC
Car Compatible
1/8 Buggy, Truck and Monster
Motor Limits
2-4S Lipo KV≤3000,2-6Poles
2-6S Lipo KV≤2400, 2-4Poles
Resistance
0.0002ohm
Battery Cell Count
6-19S NIMH or 2-6S LIPO
BEC Output
6V@5A
Weight
45g (without wire)
Size
Length : 35.6mm
Width  : 30.6mm
Height : 22.5mm
Manuals
TS150A ESC Instruction Manual V5.0 pdf
2017-09-21
Software
SKYRC USB Link V2.10 zip
Windows
