Ares Pro
SK-400003-21
Discontinued
Description
Specification
540

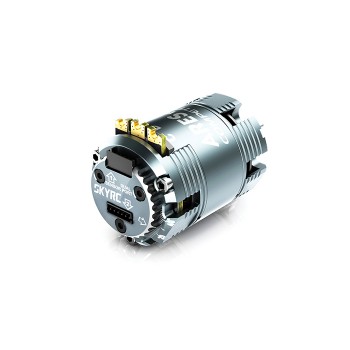

ARES PRO
COMPETITION MOTOR
1/10 Sensored Brushless Motor
Features
Aluminum Shell with CNC Forming Process
Pure Copper Coil with High Conductivity
High Power Welding Pieces

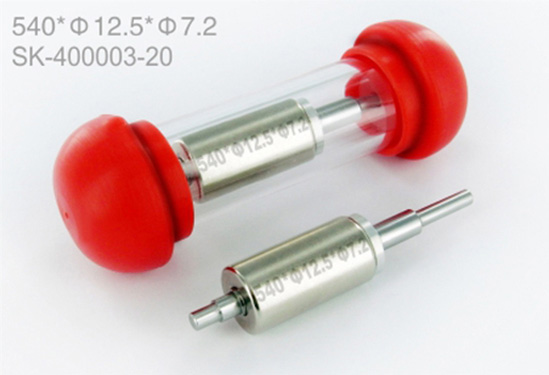

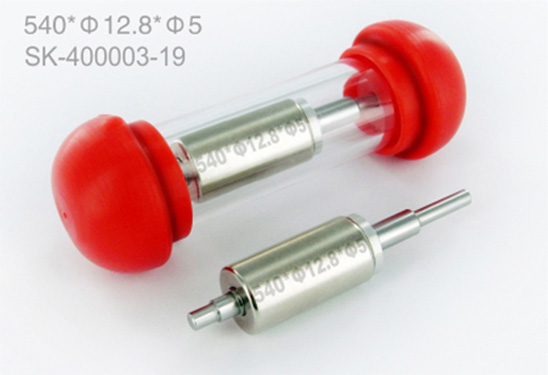

Replaceable Rotor
Powerful Sintered Neodymium Magnet
Seiko in Manufacturing with Maximum Energy Conversion
Dual Sensor Port
Radial Fan Incorporated in Front End Bell
Adjustable Timing
Compatible with Any Sensored/Sensorless ESC
IFMAR, ROAR Compliance
Sensor-Based for Excellent
Torque and Low-Speed Drivability
2 Pole Rotor
3 Slots Stator
(0.35mm)laminations
High Purity Copper
Windings for Maximizing Efficiency
Exploded View
Fixed Screw
Solder Tabs
Case
Front Bearing
Front Endbell
Timing Sensor
Assembly
Stator
Insulator
Rotor
Rear Endbell
Related Products

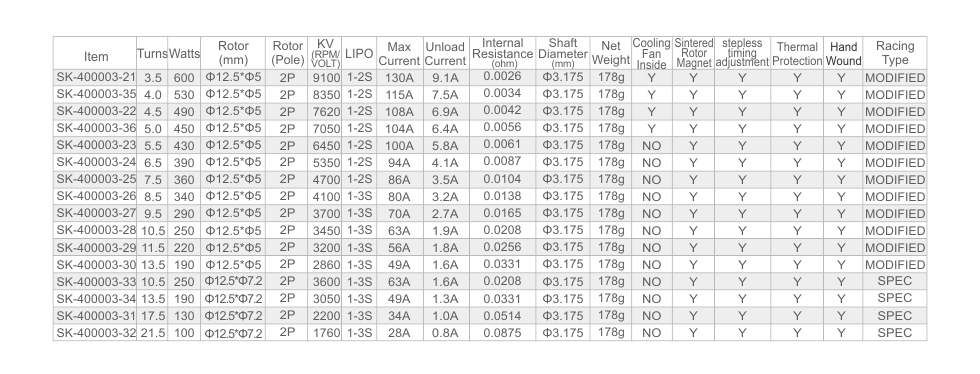

Specifications
