D200 Charger

 SK-100097 Discontinued

  SKYRC D200 is a dual output charger, which supports power distribution with AC source. It has new functions, like, Terminal Voltage Control (TVC), Battery Meter, Battery Internal Resistance Meter.
  It has software protection, like, Current Limit, Capacity Limit, Temperature Threshold and Charging Time Limit.It supports PC control and firmware upgrade.
  Additionally,it has a built in soldering iron that can heat up to 450℃ with heavy duty 60W, the temperature is adjustable from 200-450℃.


  SKYRC D200 allows you to charge two different battery packs simultaneously.

  With AC source, if you set the maximum output power of channel A xW, then that of channel B will be yW(y=200-x).

  SKYRC D200 can charge /dicharge 4.35V LiHV battery.

  Power: 60W, Temperature Range: 200-450℃ (392-842℉)
Spare tips: pencil tip×1pc,
                   chisel tip×1pc



  It has a built in soldering iron that can heat up to 450℃ with heavy duty 60W.

  SKYRC D200 has built in cell voltage balancer.

  Current Limit
Capacity Limit
Temperature Threshold
Charging time Limit

  User can store 20 charge/discharge profiles which can be called out without any special program setting.

  User can check battery pack's total voltage, and each cell's voltage.

  User can check battery pack's total internal resistance, and each cell's internal resistance.

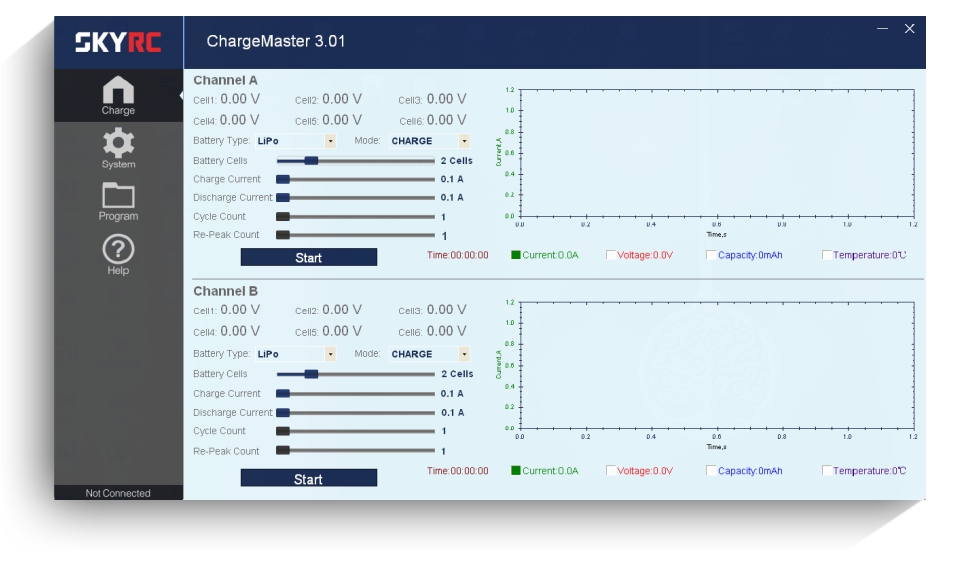

  User can use 'Charge Master' controlling and viewing real time data with graphs, also can update firmware with it.

  User can modify the end voltage (for expert only).

  Support LiHV battery.

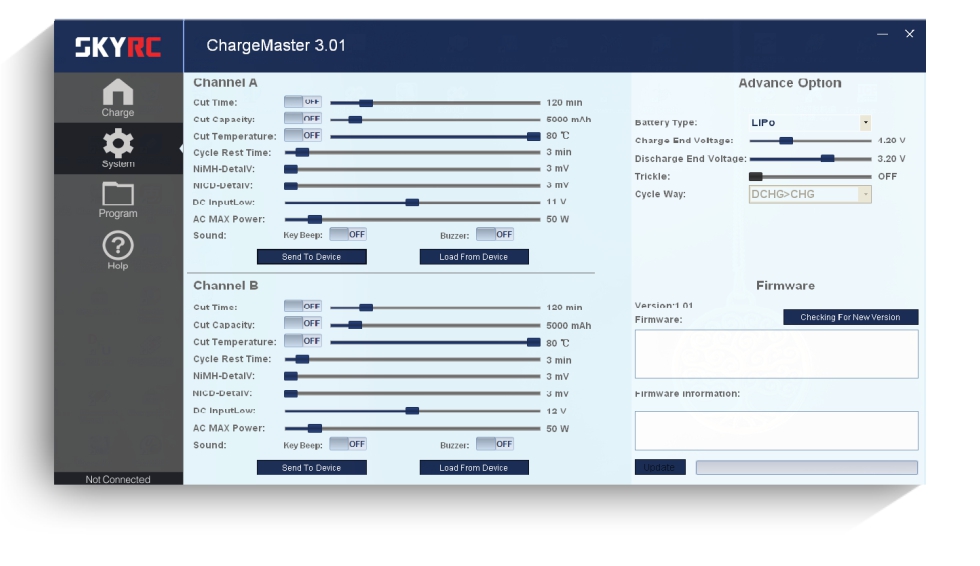

  User can monitor battery pack's total voltage, individual cell voltage etc., and view real time data and graphs of related specs during charging/discharging. Also user can use 'Charge Master' to update firmware.





  Dimension
  Net Weight   1260g
  Input Voltage   AC100-240V / DC 11-20V
  Charge Circuit Power   DC Input CH A 200W / CH B 100W
  AC Input 200W (Support Power Distribution)
  Discharge Circuit Power   2 x 10W
  Charger Current Range   CH A 0.1-20A / CH B 0.1-10A
  Discharge Current Range   0.1-5A
  Current Drian for Balancing Port   Max 300mA/cell
  Trickle Charging Current   30mA-300mA & OFF
  LiPo/LiFe/Lilon/LiHV Battery Cell Count   1-6S
  NiMH/NiCd Battery Cell Count   1-15S
  Pb Battery Voltage   2-20V




Manuals
D200 Charger Manual.pdf pdf
2017-09-06
View Download
Software
Charger Master V1.13.ZIP zip
Windows
Download
