Leopard

SK-300042-01 Discontinued

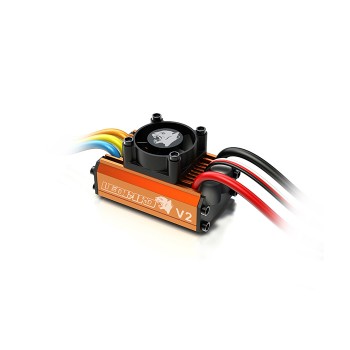

Leopard 60A ESC is high performance 1/10 Scale Brushless Motor Electronic Speed Control.

The speed controller is specially designed to offer high power and high efficiency combined with low weight and compact dimensions.



Connections:



Controls, Leopard 60A ESC V2

Fwd/Brk or Fwd/Bra/Rev

Input Power (Cells)

2-3S LiPo,4-8S NiCd/NiMh

On Resistance,    Brushless

0.001 Ohms per phase

Continuous/Burst Current

60Amp/90Amp

Linear BEC

5V 2Amp

Input Power (Cells)

2S LiPo

3S LiPo

Motor Limits

On Road:≥9.0T   Off Road:≥10.0T

On Road:≥10.0T  Off Road:≥13.0T

Thermal Overload Protection

Yes

Dimensions(L*W*H)

51.6*30*27.4mm(2.03*1.18*1.08in)

Weight(With wires)

78g(2.75oz)




Manuals
Leopard 60A ESC V2 Instruction Manual V1.2 pdf
2017-09-05
