TS50

SK-300060

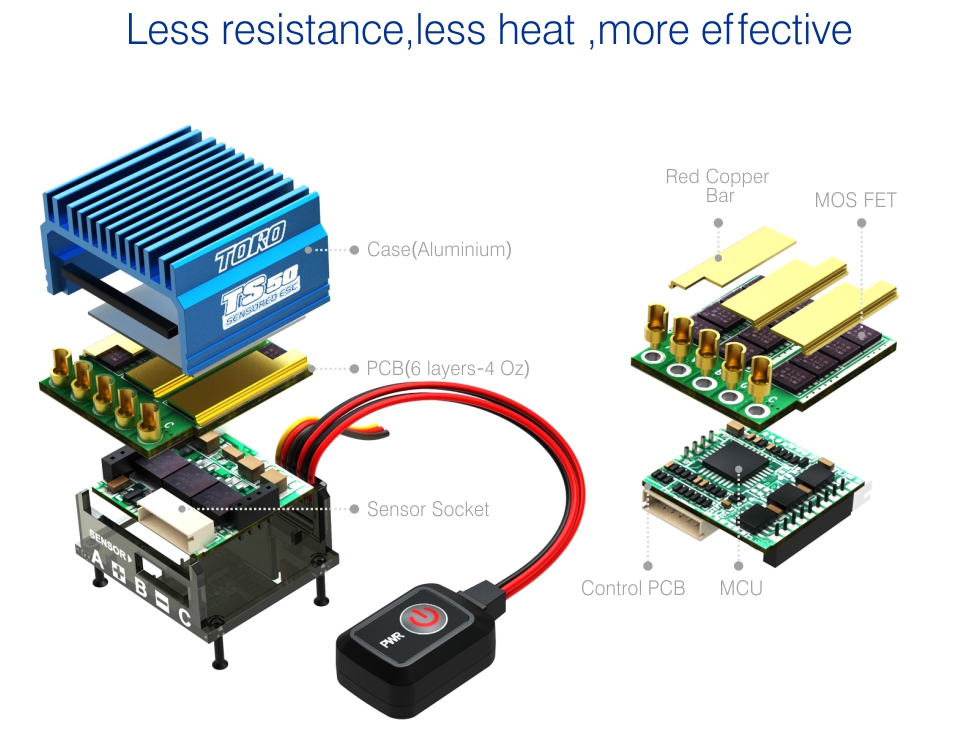

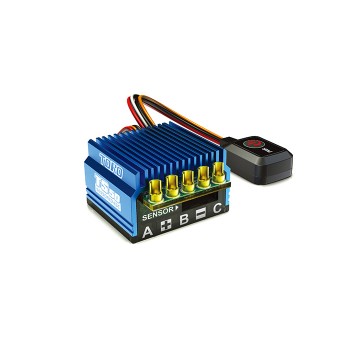

  Toro TS50 ESC is a brushless sensored ESC with small size, light weight, and electronic power switch, which is designed for 1/10 Buggy and Touring car. It accepts 4-6S NimH or 2S LiPo battery, and its BEC is 6V/2A.

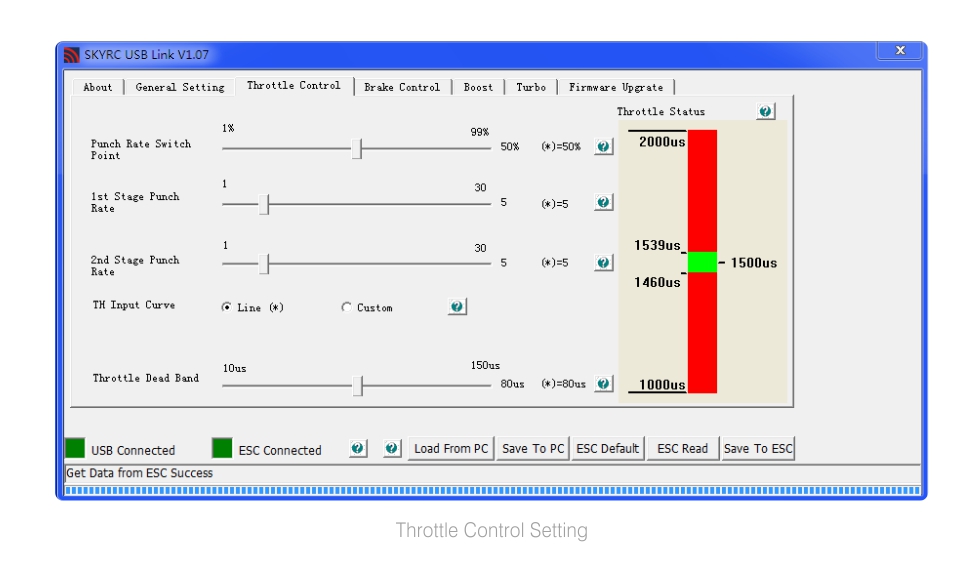

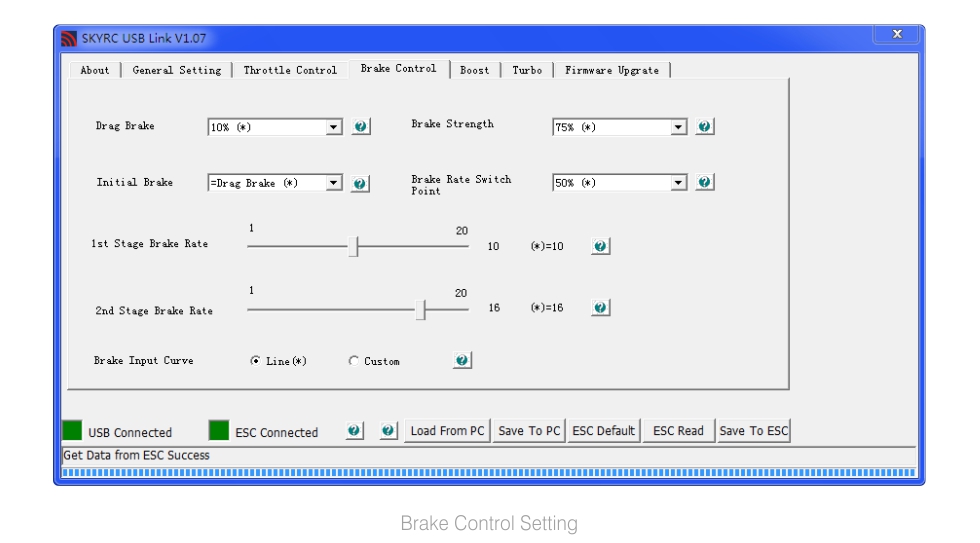

It comes with well-performed throttle and brake control function. Racers could set punch/brake control rate by point or customize the throttle/brake curve to meet the request for linear and power.
It also supports firmware update and can be programmed by program box, and SkyLink via PC.

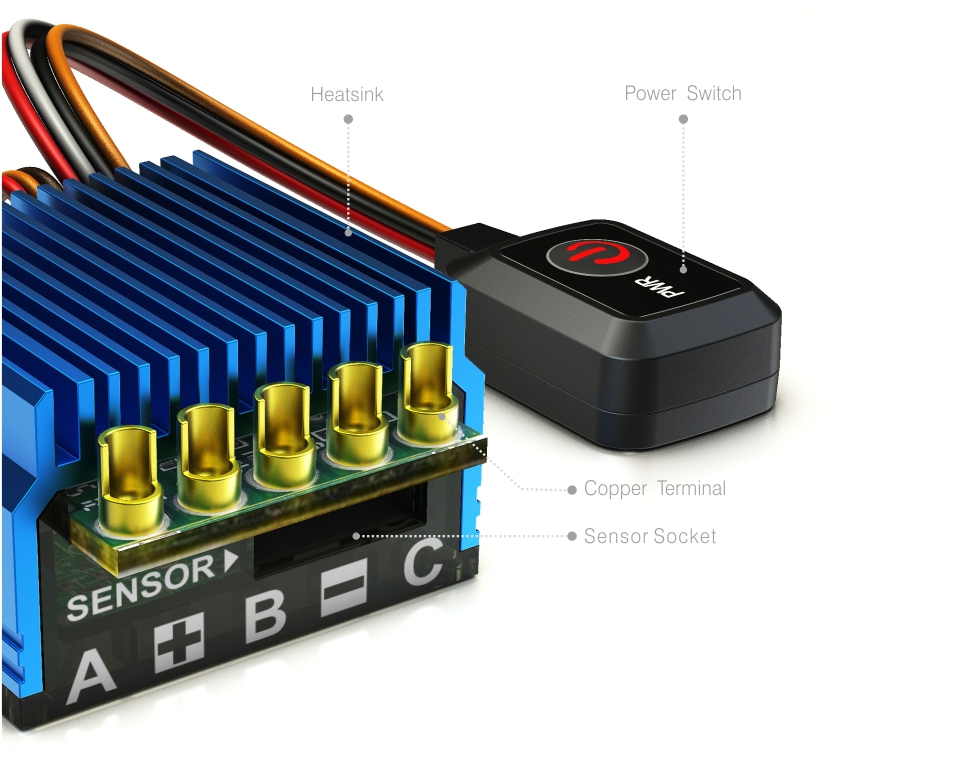

  A simple push button operates the switch meaning to eliminate the problems associated with intermittent contact of an ordinary mechanical switch.

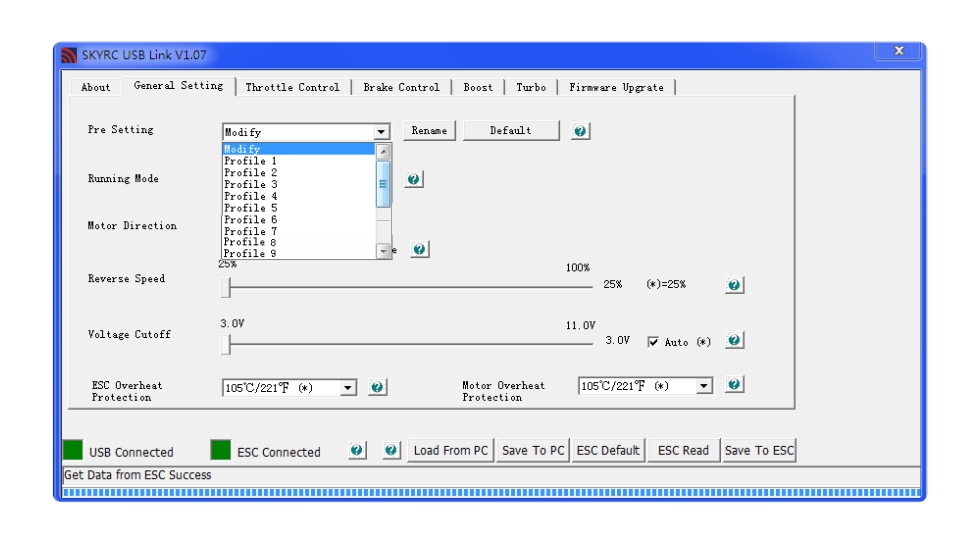

  The users could set and store 10 sets of profiles in the ESC. These data could be called out at any time without any special program setting. All the setting can be exported or imported so that the user could compare and analyze.



  Low voltage protection
  Motor and ESC overheat protection
  Signal lost protection.

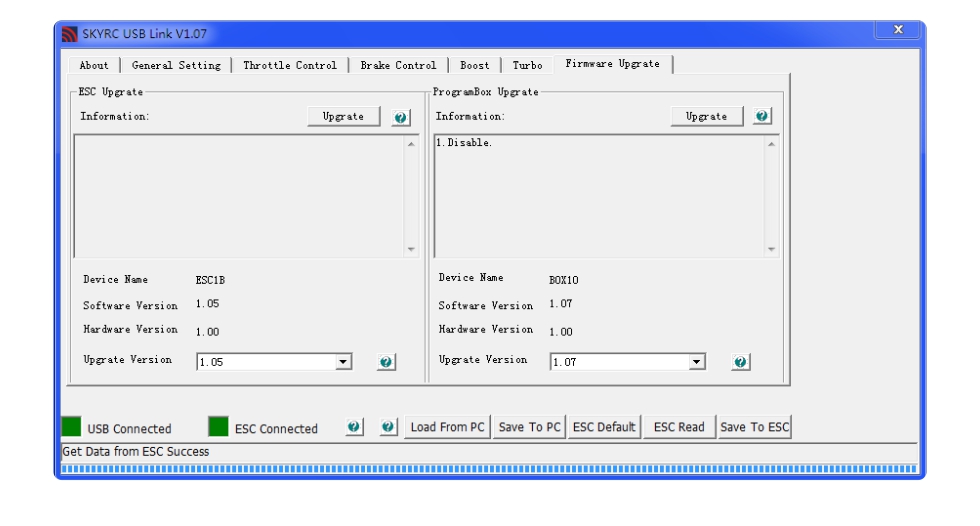

  The firmware can be updated by connecting the ESC with PC .

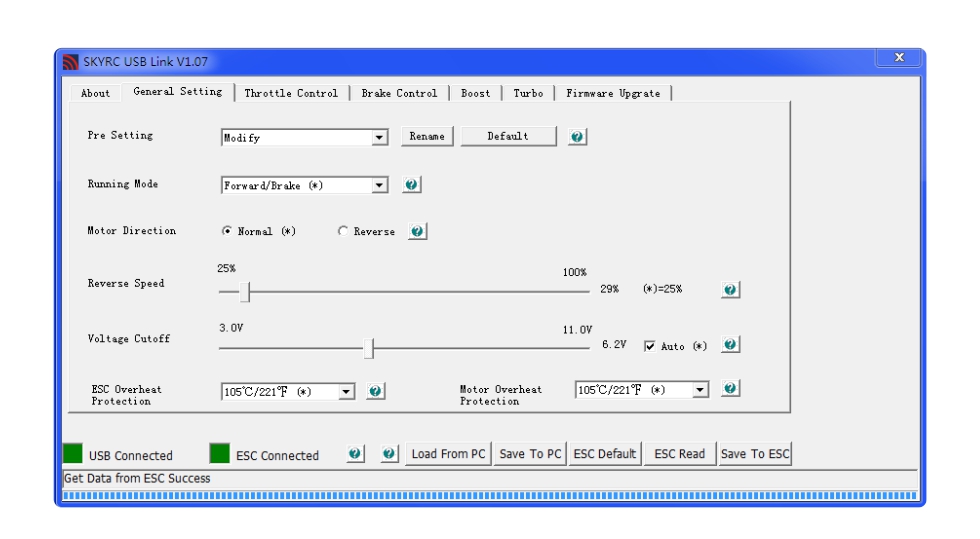

  It can be programmed by PC connected with


  Program Box

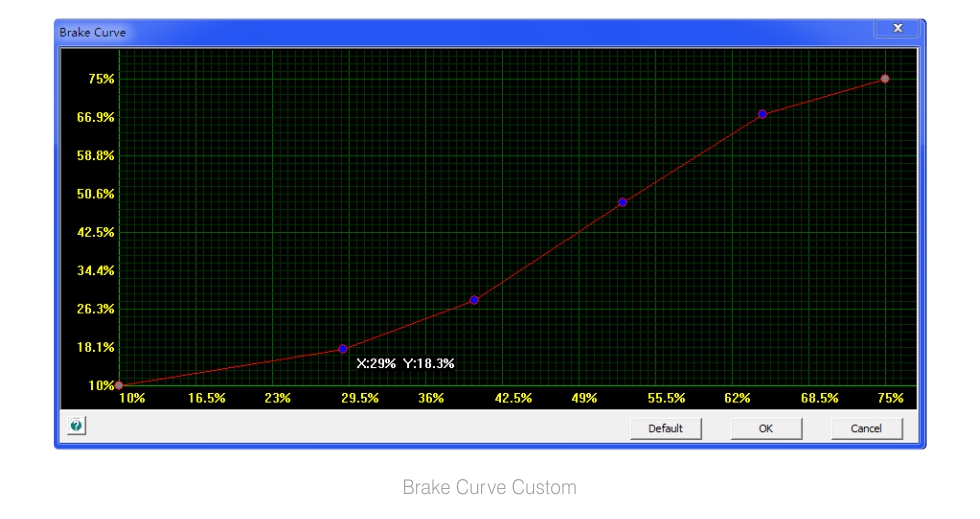

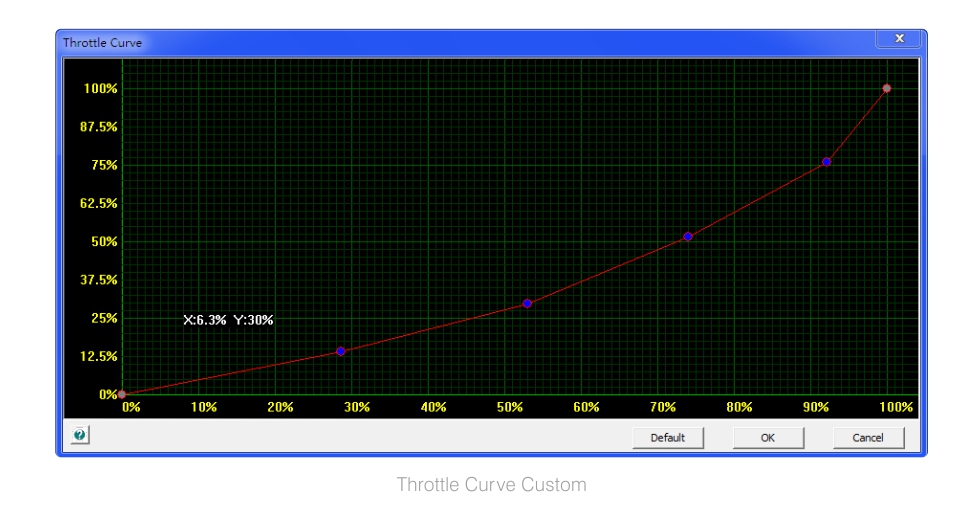

  Users could set the punch/brake control rate by point or custom the throttle/brake curve by themselves,and different customers' request for linear and power all can be met.







  Size
  Constant/Burst Current   50A/300A
  Motor Compatible   Brushless Sensor & Sensorless ESC
  Car Compatible   1/10 Buggy and Touring Car
  Motor Limits   4-6S NiMH or 2S LiPo--≥8.5T(1/10 Touring Car),≥11.5T(1/10 Buggy)
  Resistance   0.0006ohm
  Battery Cell Count   4-6S NiMH or 2S LiPo
  BEC Output   6V@2A
  Weight   60g
  FAN   Optional part
  REMARK: All the testing results are working with 540 class motors.

Manuals
TS50 ESC Instruction Manual V1.30 pdf
2017-09-05
Software
SKYRC USB Link V2.10 zip
Windows
