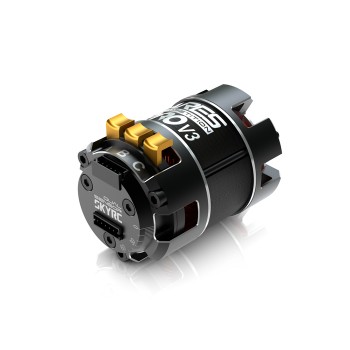

Ares Pro V3

SK-400030 Discontinued
1/10 Sensored
Brushless Motor
High RPM & High Torque 540 Ares Pro V3 Competition Brushless Motor
High RPM & High Torque for an Extremely Strong Explosive Force
With the high RPM & high torque, it can give a very strong explosive force, which will largely help the driver to win the competition.
Effective Ventilation & Extreme performance
The Ares Pro V3 motor features multiple cooling engraved fins for added heat-dissipating surface while in a more dazzling shape. It is implementing a thermal silicone insulator between the end bell and stator to conduct the internal heat to the case to reduce the temperature efficiently with multiplied power delivered!


Powerful Sintered Neodymium Magnet
Aluminum Shell with CNC Forming Process
Pure Copper Coil with High Conductivity
High Power
Welding Pieces
Replaceable Rotor
Dual Sensor Port
Adjustable Timing
Compatible with Any Sensored/Sensorless ESC
High RPM & High Torque for an Extremely Strong Explosive Force
Compact Size & Light Weight (around 20g lighter than V2)
Separable Structure
The daily cleaning and maintaining is a breeze, thanks to the separable structure design.
Consequently, the motor’s life is prolonged with improved efficiency. Working in parallel with the dynamically balanced high-precision rotor and the built-in hall effect sensor ensures the super motor linearity with hobbyists stay in total control of the racing car.
Fixed Screw Rear Endbell Timing Sensor Assembly Solder Tabs Insulator Stator Rotor Front Beaing Front Endbell
Adjustable Timing
By loosening three screws on the end bell and rotate the end bell counter to align timing marks on the end bell, timing can be adjusted to get the most out of the motor! ( Do remember to tighten the screws on the end bell after that.) In this way, torque and efficiency can be changed to reach the best performance.
Works with Mainstream
Models in the Market
The ARES PRO V3 motor is compatible with TS120, TS150, TS160, TS50 and other ESCs. It has a wide range of vehicle compatibility and provides enough power for racing cars. The overall performance can be reached by using the motor in parallel with ESC providing accurate, reliable and precise operability.
Specifications
Relevant Parameters
Turns:
10.5
13.5
17.5
21.5
KV Rating:
3950
3150
2450
2050
No-load Current(A):
2.1A
1.5A
1.0A
0.9A
Scale:      1/10th
Brushed/Brushless:      BL
Sensored/Sensorless:      SD
Pole Count:      2P
LiPo Cells:      1-3S
Rotor(mm):      12.5*7.2
Size & Weight
Diameter(mm):      35.8(1.41in)
Length(mm):      51.7(2.04in)
Shaft Diameter(mm):      3.16(0.12in)
Net Weight(g):      141g(4.97oz)
Other Parameters
Racing Type:      SPEC
