B6ACneo Charger
SK-100200
Beauty outside. Beast inside
Performance Punch
Packed with Style
Performance Punch
Packed with Style
Small Meets Power
Innovation meets GaN Technology
Innovation meets GaN Technology
Experience the latest in charging technology with the B6ACneo charger, ingeniously leveraging cutting-edge Gallium Nitride (GaN).
Gallium Nitride (GaN) is a third-generation semiconductor material with a wider band gap than traditional silicon, making GaN combine excellent heat dissipation, compact size, and reduced energy loss for higher efficiency!
Gallium Nitride (GaN) is a third-generation semiconductor material with a wider band gap than traditional silicon, making GaN combine excellent heat dissipation, compact size, and reduced energy loss for higher efficiency!
Be Legendary:
Innovation Evolved, Smaller than Credit Card

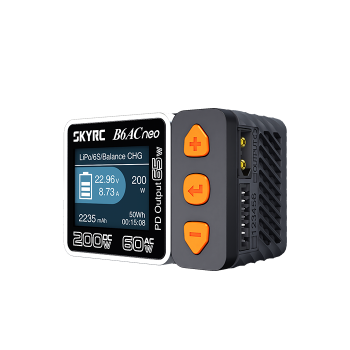

Meet B6ACneo by SkyRC, a compact evolution of the iconic iMax B6AC chargers since 2006.
Stunningly smaller than a credit card, B6ACneo sports a sleek design with vibrant colors, and boasts an impressive 200W charging capacity with DC power and 60W with AC, surpassing the original B6AC's 50W AC limit.
B6ACneo reduces charging time, maximizing your time in RC action.
Tiny & Shiny
with
Amazing Power of 200W
with
Amazing Power of 200W
Don't let its downsized footprint deceive you - this charger packs a punch!
When powered by DC, the tiny and shiny powerhouse delivers a remarkable charging power of up to 200W with a maximum current of 10A. Even when connected to the AC power, it effortlessly fills up to 60W.
When powered by DC, the tiny and shiny powerhouse delivers a remarkable charging power of up to 200W with a maximum current of 10A. Even when connected to the AC power, it effortlessly fills up to 60W.
With its tiny footprint, the B6ACneo exceeds expectations in every way!
Experience the ultimate combination of power and portability with the B6ACneo.
What more could you ask for from such a compact powerhouse?
XT60 &
Universal AC input
Universal AC input
SkyRC B6ACneo features an XT60 interface as its DC input and Universal 100-240V AC input, ensuring greater flexibility and convenience in charging your RC batteries.
Discharging Multiplied
by Balance Port
by Balance Port
The built-in balance port enables B6ACneo to discharge faster, allowing it to discharge at up to 19W when used in conjunction with the main port. In contrast, the discharge rate when using the main port alone is limited to just 5W.
1
w
Discharging
Charging
Charging Time Comparison
* Test data obtained from actual charging on the same LiPo 6S 1300mAh battery.
200W
B6ACneo powered on DC: charge time is about 10 mins.
60W
B6ACneo powered on AC: charge time is about 20 mins.
50W
iMAX B6AC powered on DC: charge time is about 40 mins.
Discharging
Discharging Time Comparison
* Test data obtained from actual discharging on the same LiPo 6S 1300mAh battery.
19W
B6ACneo discharging with balance port connected: discharge time is about 1.5 hours.
5W
iMAX B6AC: discharge time is about 6.5 hours.
Features
Max.
output
power
output
power
USB
Type-C
Output
Type-C
Output
Input
Weight
Display
Versatile 2-in-1:
Check Batteries Easily
Check Batteries Easily
When the balance port is connected, B6ACneo is a versatile battery checker capable of measuring cell voltage and the balance state of LiPo, LiHV, LiFe, and LiIon battery. The overall voltage and individual cell's voltage of will be displayed on the fly to help tell whether the battery is charged or discharged and whether it requires balancing.
It will work as a safeguard for batteries, as, for example, LiPo battery is renowned for their high energy density and lightweight properties. Proper care and monitoring are crucial to ensure their safety and longevity.
Replay
So. Pro.
So is
Digital Power
So is
Digital Power
B6ACneo is not only professional in charging but also can act as a digital power supply.
After clicks on the menu, B6ACneo is ready for your application, offering an optimal voltage of 2-27V with 0.1V increment, adjustable 1-10A current.
Short circuit, Overload, and Reverse polarity protection are all included!
After clicks on the menu, B6ACneo is ready for your application, offering an optimal voltage of 2-27V with 0.1V increment, adjustable 1-10A current.
Short circuit, Overload, and Reverse polarity protection are all included!
Learn More
Key Features:
DC Output: provides dedicated and efficient DC power, eliminating the need for the separate power supply.
Variable Voltage and Current: A digital DC power supply typically allows for the voltage and current to be adjusted, usually within a wide range. This gives it the flexibility to power a wide variety of electronic devices and circuits.
CV/CC Modes Switch Automatically
Reliable Safeguard: With built-in Over-voltage, Over-current, and Over-temperature Protection, B6ACneo can prevent damage to the power supply itself and any devices or circuits connected to it.
CV/CC Modes Switch Automatically
When acting as a digital power supply, B6ACneo can regulate its output voltage or output current at a constant level. Constant Current(CC) Mode and Constant Voltage(CV) Mode can switch automatically as follows:
If R load > (V out / I out) then power supply is in CV mode
If R load < (V out / I out) then power supply is in CC mode
This is essential and vital for efficient and precise power delivery in various applications for our RC professionals!
Versatility
CC/CV power supplies are versatile because they can switch between constant current and constant voltage modes. This makes them suitable for a wide range of applications, from powering delicate electronics to driving high-power devices.
Protection
Reliable Safeguard: With built-in Over-voltage, Over-current, and Over-temperature Protection, B6ACneo can prevent damage to the power supply itself and any devices or circuits connected to it.
Battery Charging
CC/CV power supplies are particularly useful for charging lithium-ion batteries, which require a precise charging protocol. Initially, the charger works in CC mode to restore most of the battery's capacity, then switches to CV mode to top off the charge while preventing overcharging.
Optimized for Various Load
Some loads require a specific voltage to operate correctly, while others need a particular current. A CC/CV power supply can adapt to these needs, providing a stable and suitable power output under various load conditions.
Improved Efficiency
By dynamically switching between modes depending on the load, a CC/CV power supply can often operate more efficiently than a power supply using only one mode.
Power Meets Versatility
Electrify Your Life with Type-C PD
Electrify Your Life with Type-C PD
From revving up RC gears to powering playtime on the Nintendo Switch, and even juicing up the latest MacBook Pro, the B6ACneo is the ultimate 65W PD charger for all your dynamic needs.
Unmatched Speed and Efficiency:
- It can fully charge Apple* MacBook Pro (M3 Pro/Max, 2023) review in approximately 1.6 hours；
- Microsoft* Surface Pro 9 can achieve up to 80% charge in approximately one hour；
- iPhone 15: Up to 3× faster than with a common 5W charger；
- Latest Samsung Phones: Charge them at full speed；
- B6ACneo can fully charge Nintendo* Switch console even during handheld gameplay；
-
....
It's not just a charger; it's a game-changer!
*Disclaimer: Apple, MacBook, iPhone, Nintendo, Switch, Microsoft, and Surface are trademarks of their respective owners. All company, product and service names used in this website are for identification purposes only. Use of these names, trademarks and brands does not imply endorsement or affiliation.
Rectifier circuit,
Efficiency Multiplied
Efficiency Multiplied
The B6ACneo uses a proprietary rectifier circuit to efficiently convert DC into safe D/C power for battery charging. And its onboard MCU precisely controls the charging to minimize power loss to create an incredibly compact form factor.
Enhanced Protection,
Assured Safety
Assured Safety
The SkyRC B6ACneo charger is built-in with several essential safety features ensuring optimal charging safety.
Short-circuit
Protection
Protection
Over-temperature
Protection
Protection
Capacity
Protection
Protection
Time-out
Protection
Protection
Cut-off
Protection
Protection
Over-voltage
Protection
Protection
V0
Flame-retardant
Flame-retardant
ColorX:
Easy to charge,
Easy on the eyes.
Easy to charge,
Easy on the eyes.
Discover a new ColorX interface introduced by B6ACneo based on simple and textured visuals!
The tailor-designed light cyan and green color scheme are for RC charging. It helps you focus on the setting.
The Web2.0 responsive menu and well-designed icons make the operation more suitable for players accustomed to operating smartphones!
Time to say bye-bye to dull typography and welcome bold and beautiful brand-new UI.
Life doesn't have to be boring, and neither does charging!
Charge in your language
ColorX is designed to be easily localized and comfortably engaged!
The interface is currently available in English, Dutch, French, Chinese and Japanese. Users can easily change the language with simple clicks so that they can charge in the most comfortable language.
The interface is currently available in English, Dutch, French, Chinese and Japanese. Users can easily change the language with simple clicks so that they can charge in the most comfortable language.
*More languages will be released by time!
*More languages will be released by time!
"Hush, easy!
I am charging!"
I am charging!"
Even under full power load, B6ACneo's cooling fan operates at a maximum of 48 dB*, which is acceptable to most users.
You can confidently study, fine-tune your pit work, or relax while charging without disruptions or distractions.
We understand the importance of maintaining a peaceful atmosphere, and we have prioritized our charger's quietness.
You have every right to focus on what truly matters to you.
You have every right to focus on what truly matters to you.
* A sound level of 48 decibels (dB) is considered relatively quiet in our daily life. According to the CDC website, sounds at 48 dB typically don't cause any hearing damage.
Better Over Time:
Upgrade Firmware
Hassle-Free
Upgrade Firmware
Hassle-Free
Upgrade your charger effortlessly with the complimentary Charger Master App. Stay informed and receive instant prompts whenever a firmware update is available. Updating your charger is as simple as connecting it via the Type-C port.
Enjoy a happier charger as each upgrade brings bug fixes and compatibility, improved stability, and enhanced performance.
We are Certified, We are Qualified!
Our products are designed, tested, and approved to meet worldwide standards for Product Safety, Electromagnetic Compatibility, and other regulatory compulsory requirements.
They are intended for use in accordance with their designated purpose.
Seeing is Believing
Experience with AR!
Use AR to imagine how the charger will look, feel, and fit on your desktop. Use your Apple devices camera to scan the QR code or open this page in Safari on your iPhone or iPad for an AR preview of from every angle.
*The shown dimensions may differ from those of the actual product.
**iOS 13, iPadOS 13, ARCore 1.9, or higher Required.
**iOS 13, iPadOS 13, ARCore 1.9, or higher Required.
Specifications
Size and Weight
Shell material: PC-ABS V0
Size: 70.6*50.6*46mm
Weight: 150g
Size: 70.6*50.6*46mm
Weight: 150g
Display
Display Type: TN
Size: 1.77 inch
Panel Active Area: 28.03*35.04mm
Resolution: 128x160 Pixel
Number of Colors: 262K
Size: 1.77 inch
Panel Active Area: 28.03*35.04mm
Resolution: 128x160 Pixel
Number of Colors: 262K
Power
AC Input Voltage: 100V～240V 50/60Hz
DC Input Voltage: 10-30.0V
Charger power:
DC：200W
AC：60W
QC3.0 / PD: 5V⎓3A, 9V⎓3A, 12V⎓3A, 20V⎓3.25A Max. 65W
Discharge power:
19W based on 6S(4.2V/S)
DC Input Voltage: 10-30.0V
Charger power:
DC：200W
AC：60W
QC3.0 / PD: 5V⎓3A, 9V⎓3A, 12V⎓3A, 20V⎓3.25A Max. 65W
Discharge power:
19W based on 6S(4.2V/S)
Battery
Battery Types/Cells:
LiPo/LiFe/LiIon/LiHV: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 3S/6S
LiPo/LiFe/LiIon/LiHV: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 3S/6S
Charge and Discharge
Charge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.2-10.0A
Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A
Balance current
LiPo/LiFe/LiIon/LiHV: Max. 500mA
Operation
LiPo/LiFe/LiIon/LiHV: Balance CHG, Charge, Storage, Discharge
NiMH/NiCd: Charge, Re-Peak, CYCLE_C_D, CYCLE_D_C, Dishcarge
Pb: Normal, AGM Charge, Cold Charge, Discharge
