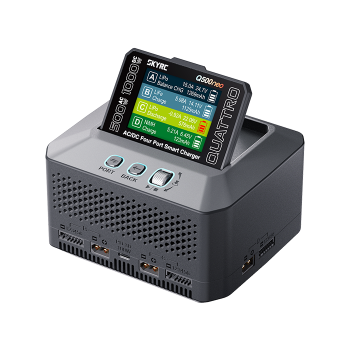

Q500neo
SK-100232
25A per Port.
Fast, Stable.
Fast, Stable.
Each port supports up to 25A of charging current, making it suitable for more demanding battery setups.
It works well with both high-capacity batteries and higher-load applications, while maintaining stable and efficient performance.
Speed and stability, combined!
Dual AC/DC Input.
Flexible for Every Setup.
Supports AC and DC input for easy switching across different scenarios.
Delivers stable, reliable performance—whether for everyday use or high-load applications, indoors or at the track.
Outsized Performance
Compact in size, powerful in delivery.
Behind its performance is a high-performance Arm® Cortex®-M 32-bit processing core, keeping charging control precise, responsive, and stable—even during high-power operation.
Behind its performance is a high-performance Arm® Cortex®-M 32-bit processing core, keeping charging control precise, responsive, and stable—even during high-power operation.
Serious power, packed into a compact footprint.
Multiplied by
Proprietary HyperBoost
Proprietary HyperBoost
Thanks to the 200 MHz ARM Microcontroller, the deployed Oversampling Technology can improve ADC Resolution to 16bit. The efficient PID mechanism can fine-tune the current to increase response speed and the charge current accuracy.
Do More With One Charger!
Multiple Chemistries Go.
Multiple Chemistries Go.
With exceptional versatility, Q500neo can charge a wide range of battery chemistries. This powerhouse can charge everything from LiPo and LiFe to Li-ion, LiHV, Pb, NiMH, and NiCd.
Unlock the full potential of your battery arsenal with Q500neo– versatility multiplied capability.
Reverse Discharge
Power on the go. Smarter. Greener.
Power on the go. Smarter. Greener.
Discharge your battery at up to 500W—and put that energy to work.
Exclusively between ports A and B, Q500neo transfers unused energy from one battery to another, maximizing efficiency and reducing waste.
Whether at the track, in the pit, or on the move, RC enthusiasts now have a cleaner, smarter, and more flexible way to stay powered up.
A small shift—with a big impact on how you manage energy.
So. Pro.
So is
Digital Power
So is
Digital Power
Q500neo excels not only in charging, but also as a versatile quad output digital power supply.
With just a few clicks on the menu, Q500neo offers a voltage option, from 1.0V to 30.0V, with an adjustable increment of 0.1V. Additionally, the current can be adjusted from 0.1A to 25.0A, with a precision of 0.1A.
This Dual output digital DC power supply provides two independently controllable power outputs, making it a versatile tool for various RC testing and prototyping applications.
PD 3.0 @ 100W
Power Anywhere. Anytime.
Power Anywhere. Anytime.
From powering RC gear to extending playtime on Nintendo Switch, to charging the latest MacBook Pro,
and everything in between, including phones, tablets, and earbuds.
Q500neo doubles as your ultimate 100W PD charger, built to keep up with every moving need.
Master On Your Phone.
OTA Ready.
Always Up to Date.
OTA Ready.
Always Up to Date.
Take full control of Q500neo with ease. Use the dedicated smartphone app via Bluetooth.
Access real-time data, track charging curves, monitor capacity, voltage, and power—all from your phone.
With OTA updates, your charger stays up to date with new features and the latest optimized charging performance.
Your charger, always up to date.
Peace of mind.
Fold After Fold.
Fold After Fold.
Built to SkyRC’s uncompromising performance standards,
the fold-down display has completed 10,000 laboratory-grade fold tests.
Every fold is engineered to withstand long-term, high-frequency use—ensuring consistent stability, lasting durability, and confidence every time you open or close it.
5000
10000
Smart Cooling. Stay Cool.
The built-in cooling system maintains stable temperature control, even under high-power operation.
Fan speed adjusts dynamically based on load, ensuring efficient heat dissipation and consistent performance.
Charge in your language
ColorX is designed to be easily localized and comfortably engaged!
The interface is currently available in English, Dutch, French, Chinese and Japanese. Users can easily change the language with simple clicks so that they can charge in the most comfortable language.
The interface is currently available in English, Dutch, French, Chinese and Japanese. Users can easily change the language with simple clicks so that they can charge in the most comfortable language.
Seeing is Believing
Experience with AR!
Use AR to imagine how the charger will look, feel, and fit on your desktop. Use your Apple devices camera to scan the QR code or open this page in Safari on your iPhone or iPad for an AR preview of from every angle.
*The shown dimensions may differ from those of the actual product.
**iOS 13, iPadOS 13, ARCore 1.9, or higher Required.
**iOS 13, iPadOS 13, ARCore 1.9, or higher Required.
- Arm and Cortex are trademarks and/or registered trademarks of Arm Limited (or its affiliates).
Specifications

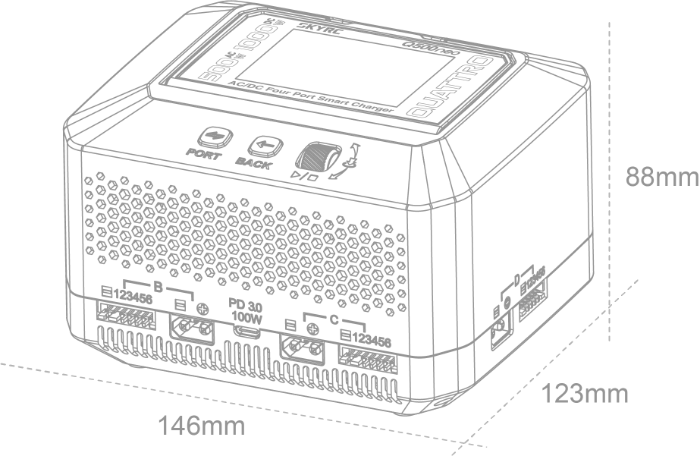

Size and Weight
Case Size: 146x123x88mm
Weight: Approx.1206g
Weight: Approx.1206g
Display
Display Type: TN
Size: 2.8 inch
Panel Active Area: 43.20*57.60mm
Resolution: 240x320 Pixel
Number of Colors: 262K
Size: 2.8 inch
Panel Active Area: 43.20*57.60mm
Resolution: 240x320 Pixel
Number of Colors: 262K
Power
AC: 100V~240V（50/60Hz）
Input：9-36V
Charge Power:
Discharge Power:
Input：9-36V
Charge Power:
AC: 500W
DC：1000W
DC：1000W
Discharge Power:
Main Port: 10W
Balance Port: 24W Max
Balance Port: 24W Max
Battery Types/Cells:
LiPo/LiFe/Li-ion/LiHV: 1-6S
NiMH/NiCd: 1-15S
Pb: 3S/6S/12S
NiMH/NiCd: 1-15S
Pb: 3S/6S/12S
Charge and Discharge
Charge Current
LiPo/LiFe/Li-ion/LiHV:
NiMH/NiCd:
Pb:
Discharge current
LiPo/LiFe/Li-ion/LiHV:
A/D Port:
0.1A~0.5A（±0.1A）
0.6A~15A（±10%）
0.6A~15A（±10%）
B/C Port:
0.1A~0.5A（±0.1A）
0.6A~25A（±10%）
0.6A~25A（±10%）
NiMH/NiCd:
0.1A~0.5A（±0.1A）
0.6A~10A（±10%）
Pb:
0.1A~0.5A（±0.1A）
0.6A~15A（±10%）
Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb: 0.1A ~ 2.0A
Working and Storage
Operating temperature: 0℃-40℃
Working humidity: 5% ~ 75% RH (Non-condensing)
Storage temperature: -10℃ ~ 70℃
Storage humidity: 5% ~ 75% RH (Non-condensing)
Working humidity: 5% ~ 75% RH (Non-condensing)
Storage temperature: -10℃ ~ 70℃
Storage humidity: 5% ~ 75% RH (Non-condensing)
