12A ESC

SK-300067 Discontinued

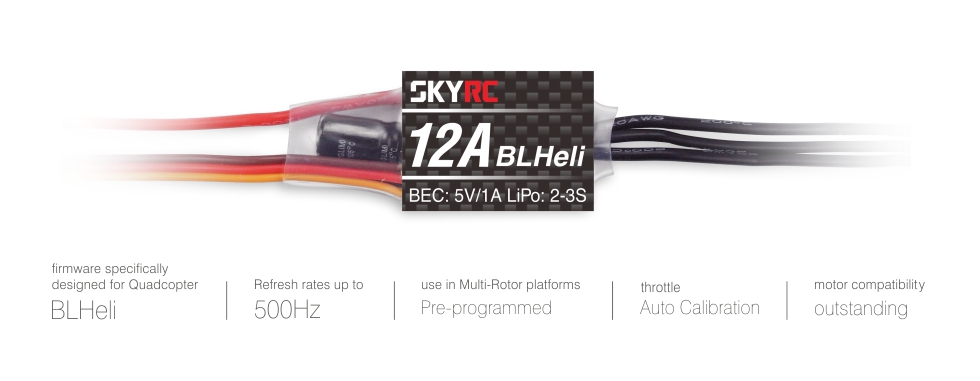

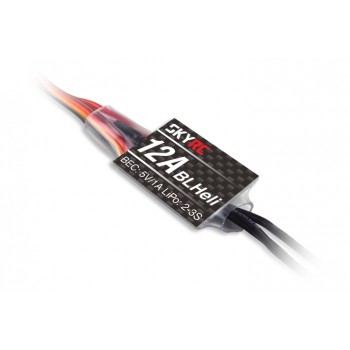

  SKYRC 12A Multi-Rotor ESC, loaded with BLHeli firmware, is developed for Quadcopters. Its refresh rate can go up to 500Hz, and has higher compatibility with racing motors on the current market. Better performance will be achieved with SKYRC 1806 or 2204 motor.

  Higher level of current endurance   Braking setting available, off-by-default   Support
OneShot125


  Loaded with BLHeli firmware, quicker throttle response   Compatible with Naze 32, CC3D & other mainstream flight controllers   Multiple protection of low-voltage cutoff, over-heat and signal loss










  Item Continuous
Current
Burst Current
(10S)
Li-xx Battery
(cell)
BEC
Output
Programmable Size-cable excluded(mm) Weight-cable excluded(g)
  BLHeli-12A 12A 15A 2-3 1A/5V YES 26×20 4.26
