Proteus x524

SK-400008 Discontinued

  Rotor - 4 Pole Neodymium Magnets
  Stator - Super Thin(0.2mm) Laminations
  High Quality Bearings
  Super Strength 8mm shaft
  With Water Cooling Shell
  6 Connectors
  2 wire configuration-Triangle & Star
  Proteus Series Motors are designed for large scale RC boat (1.5-2m length).

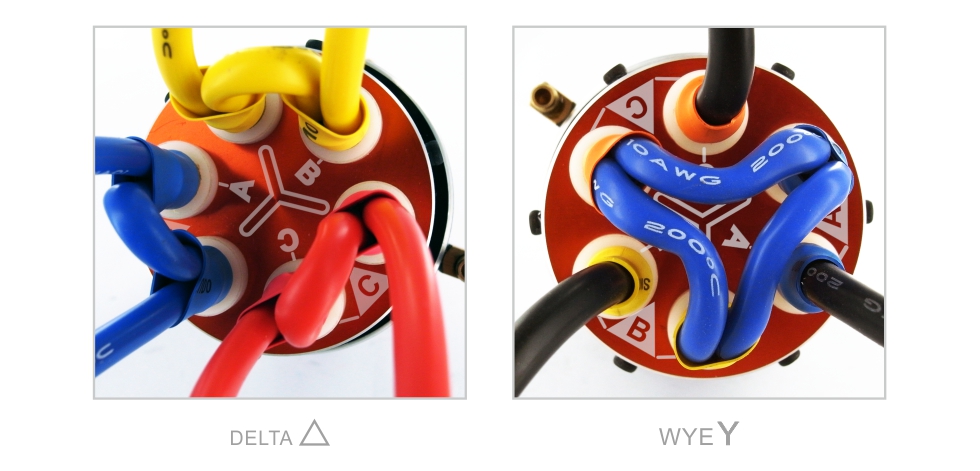

The revolutionary design of Proteus Motors is its unique wire configuration. There are six connectors on the motor and the user can switch the wire configuration (star or triangle) by themselves at any time. When the user requests the motor with more RPM and high speed, he could use triangle configuration; when the user requests the motor with more torque and power, he could use star configuration. In this case, one piece of motor can meet the user's request for speed or power in different situation.
  These motors can be switched between STAR and TRIANGLE wire configuration.
Triangle Configuration=More RPM
Star Configuration=More Torque
  There is water cooling shell outside of the motor. It is designed to cool down the motor temperature so that the motor could perform best.
Item No

Product Name

Watts Max Voltage Max Amps Resistance KV  (RPM/volt) Max RPM Length Diameter (w/fins) Weight Shaft Diameter Length of extend shaft
SK-400008-01   X524 3Y 6300 50V 126A 0.0141 600 30000 112mm 55.8mm 1035g Φ8mm 30mm
SK-400008-01   X524 3D 6300 28V 225A 0.0035 1,050 30000 112mm 55.8mm 1035g Φ8mm 30mm
SK-400008-02  X524 2Y 6300 33KV 190A 0.0069 910 30000 112mm 55.8mm 1035g Φ8mm 30mm
SK-400008-02  X524 2D 6300 19KV 331A 0.0029 1,580 30000 112mm 55.8mm 1035 Φ8mm 30mm
