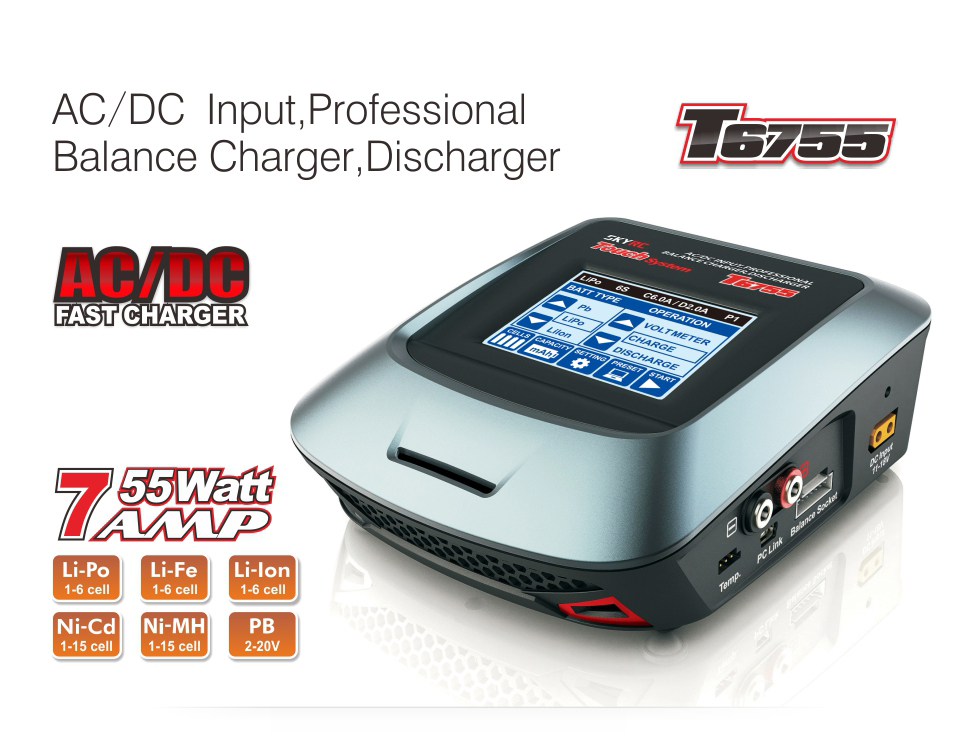

T6755 Charger

SK-100064 Discontinued


  It is equipped with a 3.2" (320*240 dot) touch sensitive color LCD screen and user can have best using experience
and interactivity.


  The tilt stand can support the chargers at different tilt angles so that the users can get best operational experience.

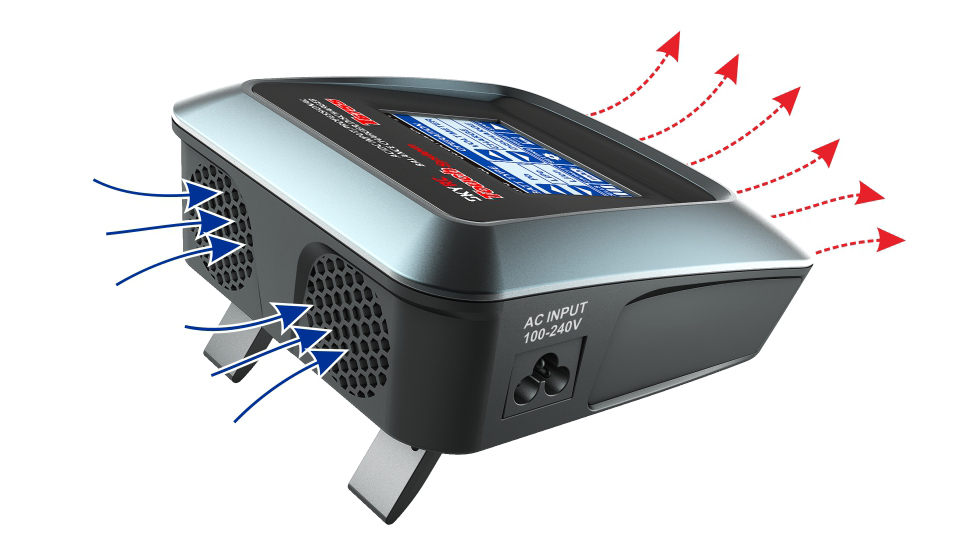

  The ventilation holes are designed in the front and back panel for efficient air-flow which is vitally important for charger.

    The user interface is intuitive as all the operating instruction and changing status is displayed in the screen and the touch screen can register the users' input precisely so that the users can have a wonderful and comfortable "touch" experience.

  When the charger is working, the users could check the information of charging capacity, cell voltage, charging time, external and internal temperature easily. What's more, it can also display the voltage in a graphic.

  The charger allows user to set the charge /discharge end voltage.



  Automatic Charging Current Limit
Capacity Limit
Temperature Threshold
Processing Time Limit

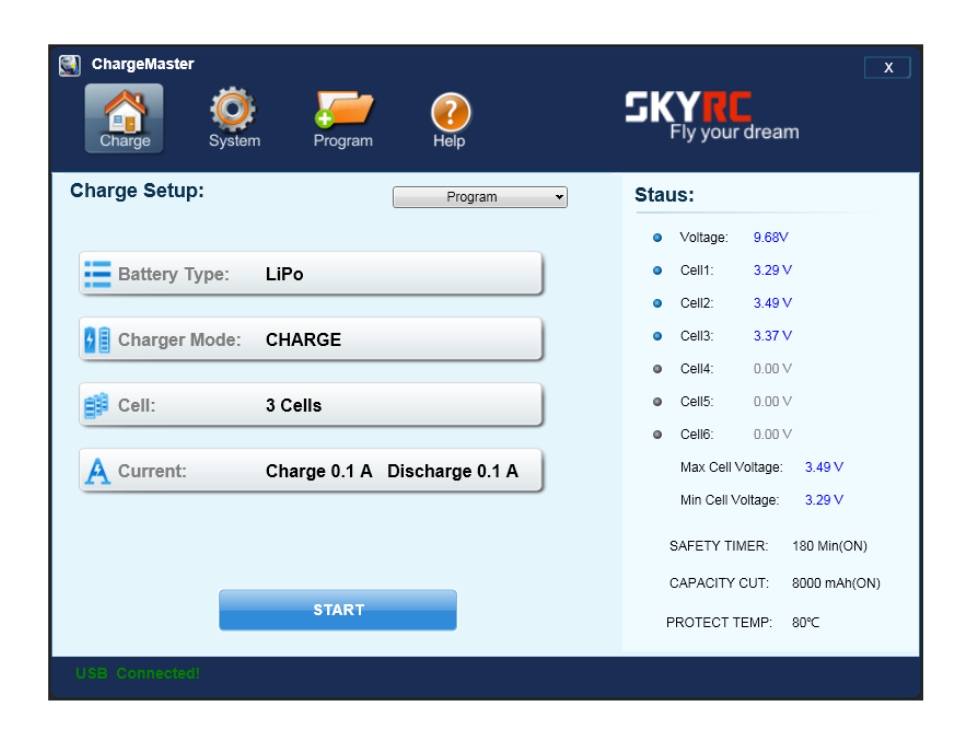

  The free "Charge Master" software gives user unparalleled ability to operate the charger through the computer. The user can monitor pack voltage, cell voltage and other data during the charging, view charge date in realtime graphs, and can also control charging and update firmware from "Charge Master".
  •Touch system •Maximum safety protection
  •Charging status monitor •Battery meter
  •Microprocessor controlled •PC control software"Charge Master"
  •Terminal voltage control •High-powered and high-performance  circuit
  •Multi-language and four color theme optional


Users can control and monitor the charge through computer when Charge Master software is installed.
** You can download Charge Master software from our website  www.skyrc.com
  This function is available by connecting optional temperature probe which is not included in the package.




  Input Voltage



AC Input: 100-240V/DC Input: 11-18V
  Controls   Color LCD Touch Screen
  Display Type   65.85*49.63mm graphic touch sensitive LCD 3.2"(320*240 dot) screen and four color theme
  Display Backlight   White
  PC Communications   USB Port for PC Control & Firmware Upgrade
  Case Material   Plastic
  Cooling System   Built-in, one 40*40*10mm fan
  Case Size   140*165*60mm
  Weight   540g

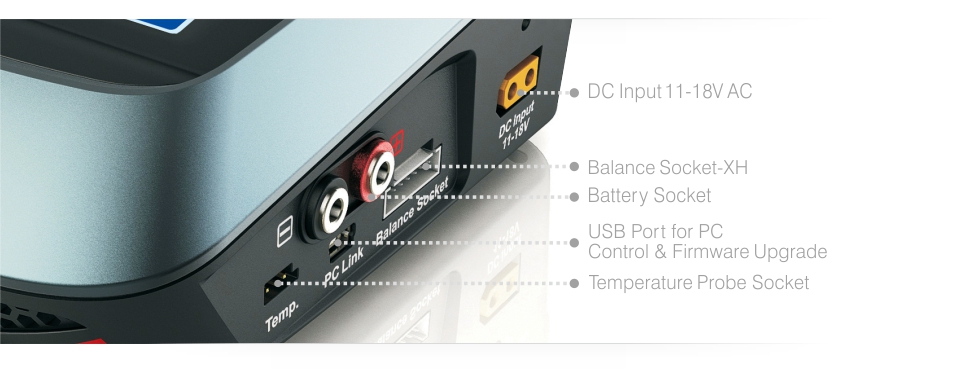

  External Port   Balance Socket-XH, Temperature Probe Socket, DC Input, USB port for PC, AC Input Power Port
  Delta Peak Detection   NiCd: 3-15mV/cell
NiMH: 3-15mV/cell
  Charge Cutoff Temperature   20-80°C (adjustable)
  Charge Voltage   NiCd/NiMH: Delta peak detection
LiPo: 4.18-4.3V/cell
LiIon: 4.08-4.2V/cell
  Balance Current   200mA/cell
  Reading Voltage Range   0.3-5.0V/cell
  Battery Types/Cells   NiCd/NiMH: 1-15cells
LiPo/LiIon/LiFe: 1-6cells
Pb: 2-20V
  Battery Capacity Range   NiCd/NiMH: 100-20,000mAh
LiPo/LiIon/LiFe: 100-20,000mAh
Pb: 100-20,000mAh
  Charge Current   0.1-7.0A
  Safety Timer   1-720 minutes, Off
  Charge Wattage   55W
  Discharge Current   0.1-2.0A (±10%)
  Discharge Cut-off Voltage   NiCd/NiMH: 0.1-1.1V/cell
LiPo: 3.0-3.3V/cell
LiIon: 2.9-3.2V/cell
  Discharge Wattage   5W
  Balance Cells   6 cells
  Memory   5 different charge/discharge profiles
  Charge Method   CC/CV for lithium types and lead (pb) batteries, Delta-peak Sensitivity for NiMH/NiCd
