TS120 Aluminum

SK-300062
Suitable for 1/10 scale car
Support 2-3s LiPo battery
3.5T motor limit, 6V/3A BEC
Multiple Protections
Cooling Fan (8V 0.2A 20000RPM)

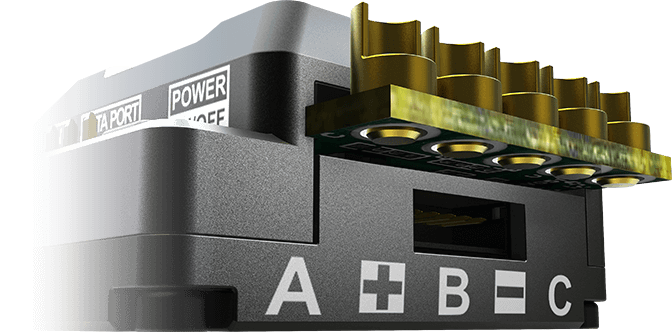

Heatsink Servo Cable Cooling Fan Socket Programming Socket Built-in Power Switch
Sensor Socket
10 User Modifiable Profiles
The users could set and store 10 sets of profiles in the ESC. These data could be called out at any time without any special program setting. All the setting can be exported or imported so that the user could compare and analyze.
Programming
It can be programmed by program box and PC.
program box (SK-300046)
specifications
Battery Cell Count
4-9S NIMH or 2-3S LiPO
BEC Output
6V/3A
Car Compatible
1/10 and 1/12 On Road and Off Road
1/10 and 1/8 Crawlers
Constant/Burst Current
120A/760A
FAN
[email protected] , MAX 12.6V
Motor Compatible
Brushless Sensor & Sensorless ESC
Motor Limits
5-6S NiMH or 2S LiPO--≥3.5T(1/10 On Road), ≥5.5T(1/10 Off Road)
8-9S NiMH or 3S LiPO--≥5.5T(1/10 On Road),≥8.5T(1/10 Off Road)
Resistance
0.0003ohm
size
height : 19mm
length : 39mm
width : 31mm
Weight : 45g (without wire)
Manuals
Toro TS120A ESC Instruction Manual V1.5 pdf
2017-09-05
Software
SKYRC USB Link V2.10 zip
Windows
