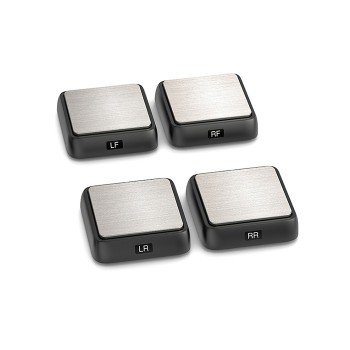

Corner Weight System

SK-500036
Gram Accuracy In Measuring To RC Hobbyists' Satisfaction
RC cars run off the track, tip over, run with tires wore eccentric from time to time. These are the typical results of incorrect CG(Center of Gravity) due to the unbalanced four wheels. Uneven wheel weight distribution will cause the car to sway more in one direction than others. In this circumstance, the car will run unstable, difficult to control!
The enhanced SkyRC SCWS2000 can help RC drivers easily measure and view the RC car's corner weight distribution through the App. With the accuracy of 1g, RC drivers can precisely adjust their car's weight at each corner to the best balance to win the race.
App-enabled and data display in realtime via Bluetooth
Designed for drift, touring cars
Unit switchable between gram and oz.
Powered by 4 x coin & button batteries.
Measure the car's corner weight, front and rear distribution and make adjustment if necessary.
The maximum weight limit for each scale is 2000 grams ( total 8000 grams ).
Accurate measurement in 0.1g increments ( equivalent to 0.01 oz ).
Accuracy meets craftsmanship
Even the slightest difference in weight has a significant difference for RC hobbyists when it comes to the race's performance and the car's condition!
High-quality aluminum with good toughness is selected as the sensor rebound material. Through the rigid and harsh manufacturing process, we created a high-precision I-shaped sensor.
To improve the overall accuracy, the measurement algorithm is enhanced from the predecessor: the precision can be obtained in the shortest time. The default unit is Gram, and switching to Ounce is also available!
When inaccuracy is found, the customized in-app program can get the calibration done quickly by tapping the screen three times.
*Users need to get the 2000g standard weight prepared for calibration
Ble 5.0: Faster Connectivity And Higher Performance
This conner weighting system is empowered by the latest Bluetooth 5.0 chip, which results in faster and more stable connection. When connected with the phone, the last century segment LED as the predecessor is enhanced the intuitive display in full screen!
Small In Size, Big In Performance
SkyRC smart weighing system is small and portable in size. It can accurately measure the weight distribution at the racing car's four corners. So RC racer can quickly adjust the weight at each corner to the best balance effect and win the race.
The Intuitive App
The App simulates practical scenarios to b intuitive and straightforward. The diagonal wheels are highlighted contrastingly in orange to indicate the selection. This is exactly the RC hobbyists' paint point when balancing and distributing the weight!
RC Gears
Scan with your Smartphone to download the RC Gears APP.
Everything Is Connected: Finally, The Corner Weighting System Gets The App!
The weight and protocol data are transmitted to the mobile App in real-time via Bluetooth.
The APP can set each scale by coordinate and save the real-time weight at the respective corner. The total diagonal weight is automatically calculated on the go!
Long-lasting Power On Coin Battery
The native emphasis on the ultra-low power consumption of Bluetooth 5.0 and our proprietary protocol get a CR2450 lithium coin battery to deliver the long-lasting, dependable performance of continuous 30 hours.
* We conduct tests on Nanfu CR2450 lithium coin battery. There may be variation in actual circumstances due to the changes in the environment. The data is for reference only!
Connectivity & Security
In the circumstance of the racing field, RC hobbyists use the scales together with the possibility of mixing and getting messed up. Protection with a password will bring peace of mind!
Support For 4 Languages
Supported languages will continue to be updated, and the new experience will be delivered to more RC hobbyists globally!
简体中文
English
日本語
Deutsch
Specifications
Size and Weight
Dimension: 68*68*22.5mm
Net weight of each scale: 70g
Other Parameters
Rated Voltage: 2.6V-3.6V
Rated Current: <10mA@DC3V
Battery: CR2450 3V Lithium Coin Battery
Maximum weight of each scale: 2000g
Tolerance: ±3g
Resolution: ±0.1g / 0.01oz
Manuals
Corner Weight System Instruction Manual V1.0 pdf
2021-08-19
