FuriaX Maxi
SK-300081
Built for 1/12 Scale.
Tuned for Racing.
Tuned for Racing.
When every millisecond and every input matters, control makes the difference. FuriaX Maxi is
purpose-built for 1/12 racing, delivering the response, adjustability, and power control needed to
attack straights, brake deep, and carry speed through every corner.
32-Bit Control
At the Core.
At the Core.
Powered by an STM32 32-bit microcontroller, this 1S ESC processes throttle, braking, and motor
control with the speed and precision demanded by competitive racing—turning every trigger input into
a controlled response.
Fast input. Precise control. Lap after lap.
100A Continuous Current
360A Peak
Power That Doesn’t Hold Back.
360A Peak
Power That Doesn’t Hold Back.
Featuring ultra-low internal resistance MOSFETs and heavy-duty copper power plates, it easily copes with
harsh 1S low-voltage, high-current demands—ensuring maximum straightaway top speed and explosive
corner-exit punch.
Sensored Precision.
Feel Every Input.
Feel Every Input.
With a built-in sensor port, FuriaX Maxi connects directly to sensored brushless motors, receiving
precise rotor-position feedback for smooth, responsive motor control.
From the first pull of the trigger to full-throttle acceleration, every input feels direct, predictable,
and connected.
0.1 ms
Every Millisecond Matters.
Every Millisecond Matters.
Response can make or break a lap.
With throttle and brake response adjustable from 0.1 ms to 3 ms, the ESC lets you dial in how quickly the car reacts to your input—from razor-sharp race response to a smoother, more progressive feel.
With throttle and brake response adjustable from 0.1 ms to 3 ms, the ESC lets you dial in how quickly the car reacts to your input—from razor-sharp race response to a smoother, more progressive feel.
Boost + Turbo
Push Beyond Full Throttle.
Push Beyond Full Throttle.
Fine-tune motor timing to match your setup and the way you race.
Boost Timing delivers up to 64° of adjustable timing, triggered by throttle position or motor RPM,
with independent control over timing ramp-up and ramp-down.
Need more at full throttle? Turbo Timing adds up to another 64° of tunable timing, with adjustable
ramp rates and activation delay.
Tune Once.
Save It. Recall It.
Save It. Recall It.
Different car. Different motor. Different track.
Save up to 20 ESC profiles in the app, name each setup, and quickly recall the one you need.
20 Profiles. Ready When You Are.
Shape Every Response.
10-Point Custom Curves.
10-Point Custom Curves.
Fine-tune both throttle and braking with up to 10 custom points.
Shape power delivery from smooth and progressive to sharp and aggressive, while dialing in braking
response from gentle initial bite to hard, decisive stopping power.
Your trigger. Your curve. Your control.
Brake Your Way.
Own the Corner.
Own the Corner.
Braking deserves just as much tuning as acceleration. Dial in brake response, initial and maximum
brake force, drag brake, and PWM brake frequency to shape the braking feel you want—from smooth,
progressive corner entry to sharp, decisive braking.
Up to 100%
Max Brake Force
Adjustable
Drag Brake
0.1–32 kHz*
PWM Brake Frequency
*Selectable ranges: 0.1–0.9 kHz and
1–32 kHz.
Replay
Stock. Modified.
One ESC. Every Race.
One ESC. Every Race.
Explosive power for Stock. Refined control for Modified. Two distinct timing strategies, optimized for different motor characteristics and racing demands.
Stock
Modified
Smart BEC
Power Made Simple.
Power Made Simple.
Switch between 6V and 7.4V BEC output right from the app, with 3A / 5A output current to power your receiver and servo setup.
Standard servos get the power they need. HV servos get the voltage they deserve.
No jumpers. No hassle. Just a tap.
Standard servos get the power they need. HV servos get the voltage they deserve.
No jumpers. No hassle. Just a tap.
BEC Output
*6 V
7.4 V
Protection by Design.
Focus on the Race.
Focus on the Race.
Built-in low-voltage, thermal, and reverse-polarity protection helps keep the Maxi ESC protected when the racing gets intense—so you can stay focused on the track.
Low-Voltage Protection
Off / 2.0–3.9V
Off / 2.0–3.9V
Thermal Protection
Off / 95°C / 105°C / 130°C
Off / 95°C / 105°C / 130°C
Reverse-Polarity Protection
Wireless Tuning.
Total Control.
Total Control.
With built-in wireless connectivity, FuriaX Maxi connects directly to the RC Gears app, letting you adjust ESC settings and monitor real-time operating data right from your smartphone—no extra programming equipment required.
Connect. Tune. Race.
See the Data.
Get the Insights.
Get the Insights.
Every run tells a story. RC Gears brings key ESC data to your screen in real time, helping you understand how your setup performs and responds on the track.
Real-Time
RPM · Input Throttle · Output Throttle · Voltage · Temperature · Timing · Current
Session Min / Max*
Minimum Voltage · Maximum Temperature · Maximum Timing · Maximum Current
RPM
Min · Voltage :
V
Temperature:
℃
Cooling, Your Call.
Fan on. Or fan off.
Fan on. Or fan off.
The integrated aluminum heatsink top cover efficiently draws heat away from the ESC, providing a solid foundation for thermal management.
When the setup demands more, add active fan cooling. For high-load setups such as 4.5T motors, the fan is required, while lighter-load setups such as 13.5T can run fanless—giving racers the flexibility to optimize cooling, weight, and space for every setup.
Compact.
Fits Right In.
Fits Right In.

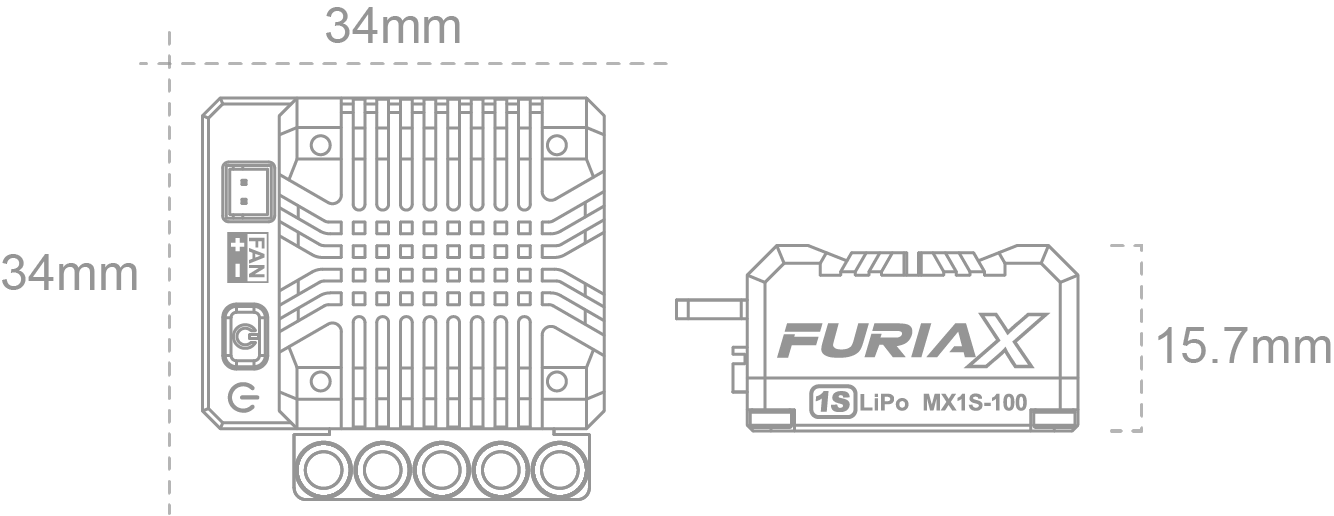

At just 34 × 34 × 15.7 mm, FuriaX Maxi is built to fit the tight confines of 1/12 racing chassis—leaving more room for a clean, race-ready setup.
34 mm
Length
34 mm
Width
15.7 mm
Height
27.9g
Net Weight
*Weight excludes wires and fan.
Seeing is Believing
Experience with AR!
Use AR to imagine how the charger will look, feel, and fit on your desktop. Use your Apple devices camera to scan the QR code or open this page in Safari on your iPhone or iPad for an AR preview of from every angle.
*The shown dimensions may differ from those of the actual product.
**iOS 13, iPadOS 13, ARCore 1.9, or higher Required.
**iOS 13, iPadOS 13, ARCore 1.9, or higher Required.
Specifications
Size and Weight
Size: 34 x 34 x 15.7 mm
Weight: Approx. 27.9g
Weight: Approx. 27.9g
TechSpec
Constant/Burst Current: 100A/360A
Compatible Motor: Brushless Sensored & Sensorless Motor
Compatible Car: 1/12th Touring Car
Battery Cell Count: 1S LiPo
BEC Output: 6V/7.4V
Low Voltage Protection: 0(OFF), 2.0~3.90V, step 0.10V
Over-temperature Protection: off / 95°C / 105°C / 130°C , default: 105°C
Cooling: Fan
Firmware: Supported
Compatible Motor: Brushless Sensored & Sensorless Motor
Compatible Car: 1/12th Touring Car
Battery Cell Count: 1S LiPo
BEC Output: 6V/7.4V
Low Voltage Protection: 0(OFF), 2.0~3.90V, step 0.10V
Over-temperature Protection: off / 95°C / 105°C / 130°C , default: 105°C
Cooling: Fan
Firmware: Supported
Working and Storage
Operating temperature: 0℃~40℃
Operating humidity: 10％~90%
Storage temperature: -10℃~50℃
Storage humidity: 20％~65%
Operating humidity: 10％~90%
Storage temperature: -10℃~50℃
Storage humidity: 20％~65%
