X2204 MOTOR

SK-400017-01 Discontinued


  The SkyRC X2204 multirotor motor,with high built quality and competitive price,are created for the passion of FPV mini multicopters.

  Genuine NMB bearings,
low resistance.
High purity copper windings,high conductivity.
  Leaf-shaped Front Cap
for cooling.
Silicon cable for easy cut & neat wiring.
  Professional balancing test greatly enchances the concentricity of the motor.

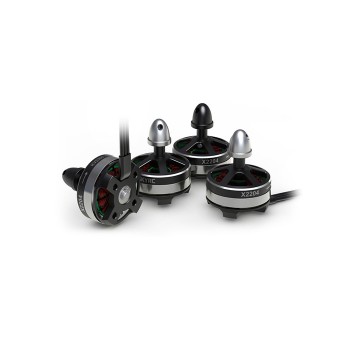

  Popular among mini multirotors. Standard package comes with 4pcs motors (2pcs CW motor,2pcs CCW motors)included wire and screws.






  KV(RPM/Volt)

2300KV

  Rotor Poles   14
  Voltage   2-4S LiPo
(When using 4S LiPo, make sure the propeller size is smaller than 6'')
  Recommended Frame   180mm & 210mm
  Stator   12
  Resistance   0.172Ω
  Weight   28g
  No Load Current   0.8A@12V

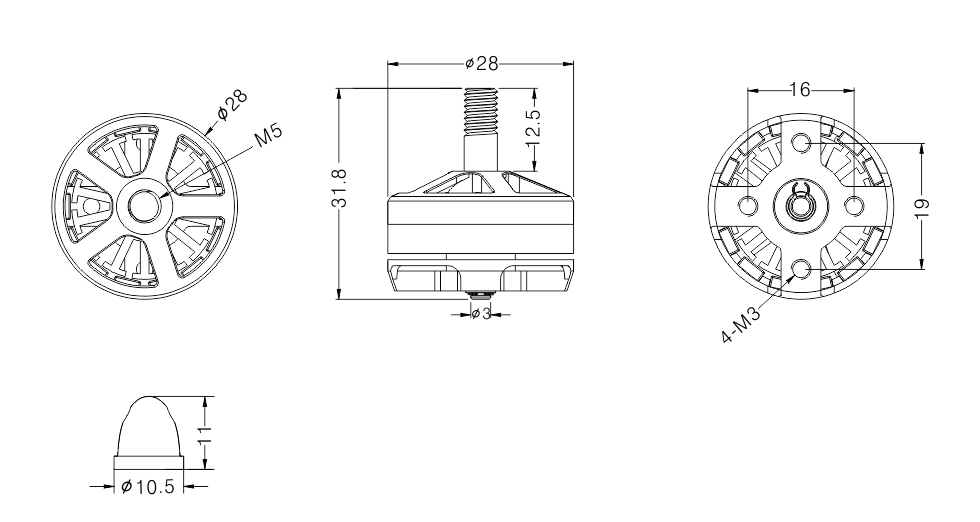

  Length   30.5mm
  Shaft   Φ3mm
  Diameter   28mm
