X8 PRO V2 Motor

SK-400028 Discontinued

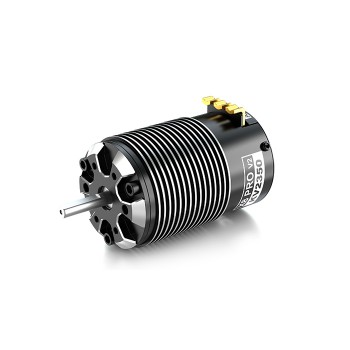

TORO X8 PRO V2
1/8 Brushless Motor
X8 Pro V2 motor is the updated version of X8 Pro, adds “adjustable timing” function. This series sensored brushless motor is designed for 1/8 scale competition buggy, equipped with 5mm shaft, 12-slot stator and 4-pole motor. It supports both sensorless and sensored Speed Controller.
Features:
  • Adjustable Timing
  • T6 Aluminum Shell with CNC Forming Process
  • High Torque Motor with 12-Slot Stator and 0.2mm Silicon-steel Sheets
  • Neodymium Sintered Magnet Rotor
  • High Power Welding Pieces
  • Durable Bearing with High RPM
  • Pure Copper Coil with High Conductivity
  • Reinforced 5mm Shaft
  • Replaceable Rotor
Exploded View
Adjustable Timing
By loosening three screws on the endbell and rotate the endbell counter to align timing marks on the endbell. In this way, torque and efficiency can be changed to reach the best performance Increasing timing increases rpm and motor temps but decreases torque, efficiency, and runtime.
Specifications
sdfjl
头的头
容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容页头的内容
sdfjl
fdafdsafda21321321fda
