Type35N
SK-100234
PD-Powered 4-8S NiMH Battery Charger
PD In. Ready
for Every Scenario.
for Every Scenario.

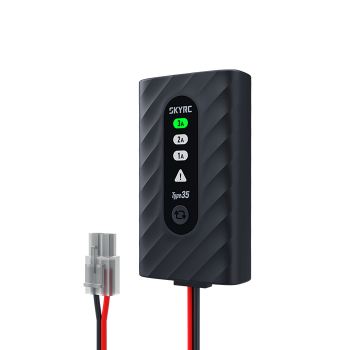

With USB-C PD input and up to 35W output, Type35N fits right in—whether you’re charging at home, in the field, or from a power bank. Just plug in and power up your 4-8S NiMH Battery.
Effortless charging—at the bench, on the track, or off the grid.
1A–3A.
Gentle or Fast — Your Choice.
Gentle or Fast — Your Choice.
Three charge levels—1A, 2A, 3A—cover every NiMH pack, from quick boosts to daily upkeep.
Smart thermal control keeps things cool and safe, even at high current.
Your coffee’s still on the way; your battery’s already full.
Smart thermal control keeps things cool and safe, even at high current.
Your coffee’s still on the way; your battery’s already full.
Style Meets Power.
In Your Palm.
In Your Palm.
Just a quarter the size of a phone and only 53g, Type35N is as refined as it is featherlight—made to fit in your hand, and go with you anywhere.
From your desktop to the outdoors, it powers up wherever life takes you.
Always charged. Always ready.
Plug.
Charge.
Go.
Charge.
Go.
No hassle — just plug in and charge on the go.
One intuitive button. Clear status LEDs. Pure simplicity.
One intuitive button. Clear status LEDs. Pure simplicity.
Status, in Color.
At a Glance.
At a Glance.
Type35N uses a tri-color LED to show you exactly what’s happening—no guesswork, just clarity.
The light says it all.
Current LED Indicator
Solid
Yellow
Yellow
Blinking
Green
Green
Solid
Green
Green
Standby
Charging
Charging complete
Warning LED Indicator
Blinking
Red
Red
Solid
Red
Red
Solid
Yellow
Yellow
Blinking
Yellow
Yellow
Battery voltage is too high (>16V) or too low (<2V)
The input voltage is lower than the battery voltage.
Over-temperature protection (Temperature sensing exceeds 110°C)
Input protection
We are Certified, We are Qualified!
Our products are designed, tested, and approved to meet worldwide standards for Product Safety, Electromagnetic Compatibility, and other regulatory compulsory requirements.
They are intended for use in accordance with their designated purpose.
Seeing is Believing
Experience with AR!
Use AR to imagine how the charger will look, feel, and fit on your desktop. Use your Apple devices camera to scan the QR code or open this page in Safari on your iPhone or iPad for an AR preview of from every angle.
*The shown dimensions may differ from those of the actual product.
**iOS 13, iPadOS 13, ARCore 1.9, or higher Required.
**iOS 13, iPadOS 13, ARCore 1.9, or higher Required.
Optional Parts
The charging cables is not included in the package. You need to purchase them separately.
SK-600023-17
SK-600023-18
Specifications
Size and Weight
Case Size: 84x48x22mm
Weight: Approx. 53g
Weight: Approx. 53g
TechSpec
Input Voltage: PD3.0 9-20V
Charge Power: Max. 35W
Standby Power: Max. 0.8W
Battery Type: NiMH/NiCd
Battery Cells: 4S-8S
Charge Current: 3A/2A/1A
-△V: 6mV/cell
Charge Power: Max. 35W
Standby Power: Max. 0.8W
Battery Type: NiMH/NiCd
Battery Cells: 4S-8S
Charge Current: 3A/2A/1A
-△V: 6mV/cell
Working and Storage
Operating Temperature: 0℃ to 40℃
Operating Humidity: 5% to 75% RH (non-condensing)
Storage Temperature: -10℃ to 70℃
Storage Humidity: 5% to 75% RH (non-condensing)
Operating Humidity: 5% to 75% RH (non-condensing)
Storage Temperature: -10℃ to 70℃
Storage Humidity: 5% to 75% RH (non-condensing)
